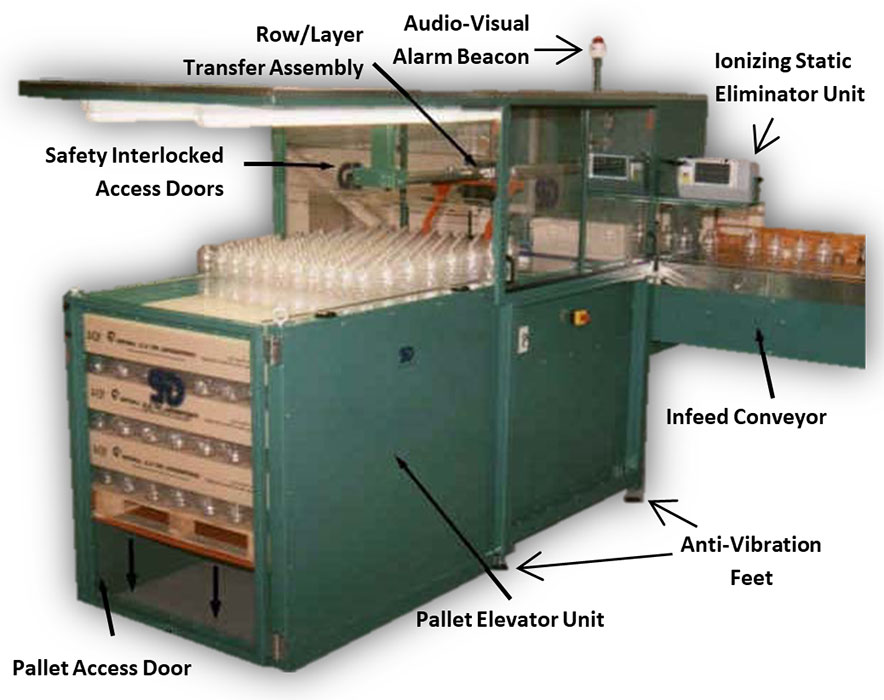

CAS’s Automatic Packing Unit provides cost-effective and simple automatic pallet or tray packing of round, square, and irregular size shaped containers. It handles any container size and most shapes, packing uniform or staggered row configurations of up to 3,500 bottles per hour. The modular design of the unit allows for enhanced automation features to be included such as slip-sheet and/or top frame placement.
This automatic packing unit can be integrated with existing packaging line equipment, and if a compact unit is required for your manufacturing facility, we offer a Compact Automatic Packing Unit.
Automatic Packing Unit Features & Benefits
Minimal operator involvement (approx. 20 seconds per tray load) to place tray, press reset button and remove loaded tray.
Fully automatic control and monitoring functions with “tray full’” warning strobe and machine status-indicator lights.
Handles any container size and most shapes, packing uniform or staggered row configurations up to 3500 containers per hour.
Fully automatic control and monitoring functions with ‘tray full’ warning strobe.
Modular design allows enhanced automation features to be included as required (e.g. slip-sheet and/or topframe placement).
Simple change parts and panel-mounted counter setting for product change over.
Interlocked, sliding access doors ensure product cleanliness and operator safety without degrading unit effectiveness.
Machine accumulation capacity up to two tray loads can be easily transferred in one operation.
Compact, automatic transfer of containers from marshalling area onto the tray with automated leveling of trays and pallets.
Operation with half- or full-height pallet elevator generates loads up to 1400mm / 55” or 2800mm / 110” high.
Container transfer onto the in-feed conveyor from either side
Low consumption supply requirements: 3-phase 415vac 50/60HZ 1KWCFM 85psi (6.0 bar)
Unit constructed to suit any tray size / orientation.
All CAS equipment is covered by copyright design.
