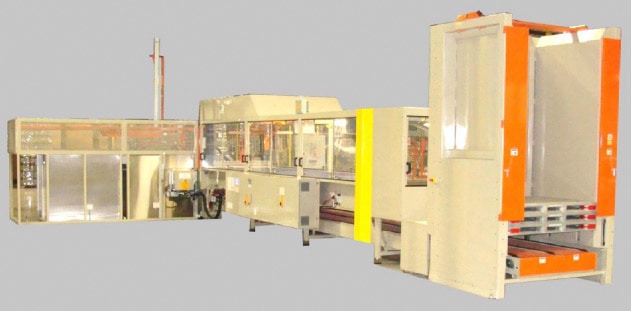

CAS’s Automatic Palletizer with Pallet Elevator is a cost-effective, reliable solution for high-speed pallet loading of empty plastic containers. It improves efficiency by stacking products at different levels and optimizing floor space. The automatic palletizer requires minimal operator involvement to place the tray, activate the pallet elevator, and remove a loaded pallet.
This automatic palletizer unit is capable of palletizing up to 10,000 bottles per hour and handles any bottle shape (round, square, or rectangular) and can be integrated with other packaging line equipment.
Automatic Palletizer Unit Features & Benefits
Requires minimal operator involvement (approx. 2 minutes per pallet load) to place tray, activate elevator and remove loaded pallet.
Fully automatic control and monitoring functions with machine status indicators which reduces manual labor and increases production line efficiency.
Handles any bottle (square, round, or rectangular) with a quick and simple product change over.
Capable of palletizing up to 10,000 bottles per hour.
Modular design allows enhanced automation features to be included as required.
Compact, automatic transfer of containers onto tray, automatic leveling of pallet and trays.
Accumulation and marshalling table, any length to suit buffer stock requirments.
Operation with half or full-height pallet elevator generates pallet loads up to 1400mm / 55” or 2800mm / 110” high.
Low consumption supply requirements: 3-phase 415vac 50/60hz 1kw; 0.5 CFM 90psi (6.5 bar).
Unit constructed to suit any pallet size or orientation.
All CAS equipment is covered by copyright design.
